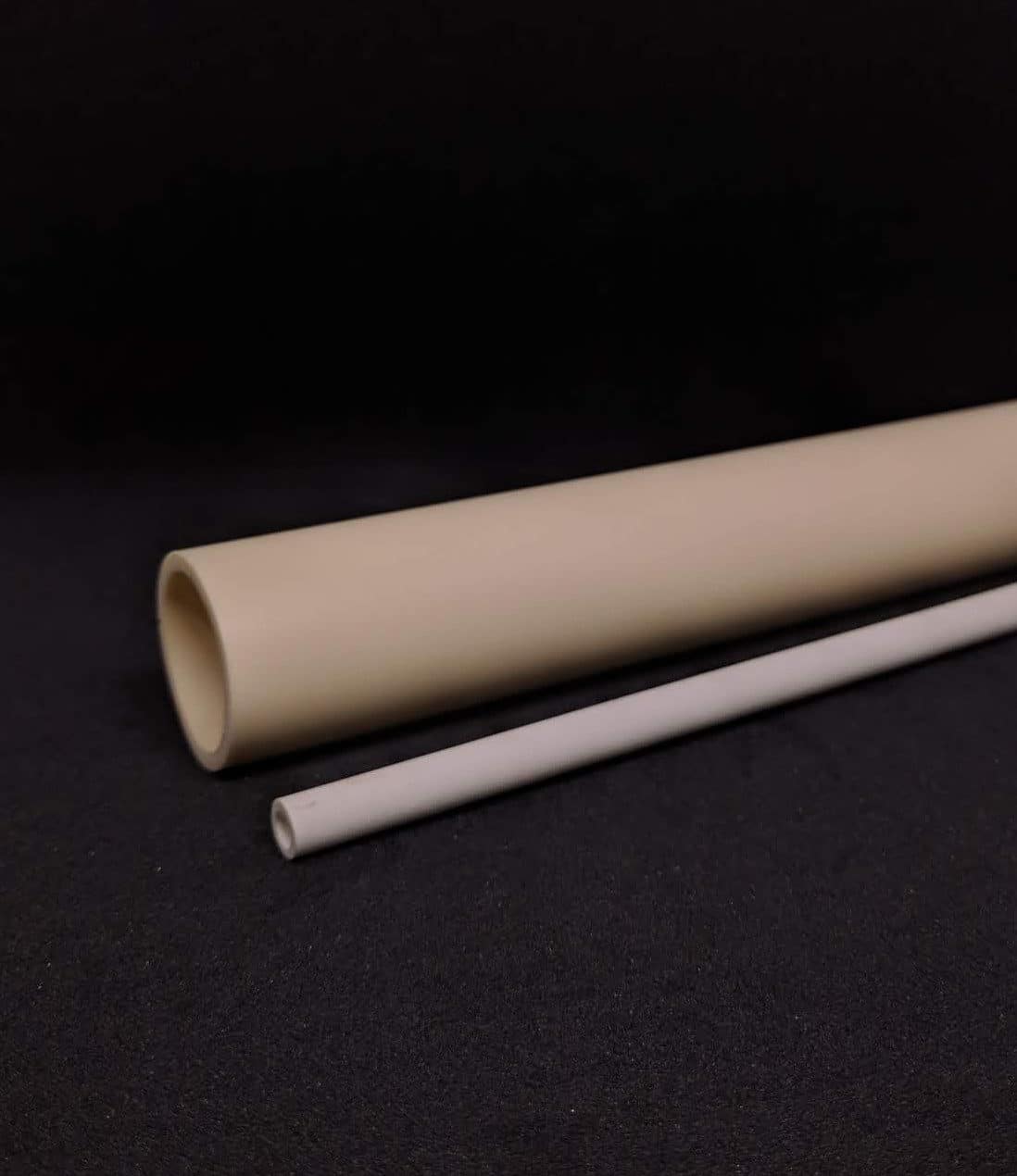

Antslab offers Alumina Tubes with 80% Al2O3. Because high-temperature processes demand reliable components, our Alumina Tubes are most apt. Laboratory and industrial furnace applications up to 1400°C uses Alumina Tubes 80% and provide desired protection against the corrosive atmosphere. Likewise, it also protects the thermocouple sensors against mechanical damages.
Following are the properties of Alumina Tubes
- The high temperature is resistant.
- Thermal shock resistant.
- Corrosion resistant.
- High thermal conductivity.
Chemical Analysis of Alumina Tubes
| Constituents | Alumina 80% |
|---|---|
| Al2O3 Min | 80 |
| SiO2 Max | 18 |
| Fe2O3 Max | 0.3 |
| Na2O Max | 1 |
Physical Properties Alumina Tubes
| Constituents | Alumina 80% |
|---|---|
| Colour | White |
| Sp.Gr. – gms/cc | 3.2 |
| Water Absorption | 0 |
| Max Service Term | 1450 |
| Gas Permeability | Nil |
| Hardness R45N | 72 |
| Chemical Resistivity | Good |
| Flexural Strength N/mm2 | 280 |
| Tensile Strength N/mm2 | — |
| CTE (RT-14000 C) x 10-6 /°C Max. | — |
Finally, the values are obtained from standard bars & cubes, Data on other shapes shall differ, the data should not be taken as a specification but for general guidance only. Furthermore, shop a wide variety of Alumina Tubes with 80% Al2O3 from antsLAB™. We offer both ends open type and One end closed type for application up to 1400C.
